Grounding Cable Earth Reel

Grounding Cable Earth Reel

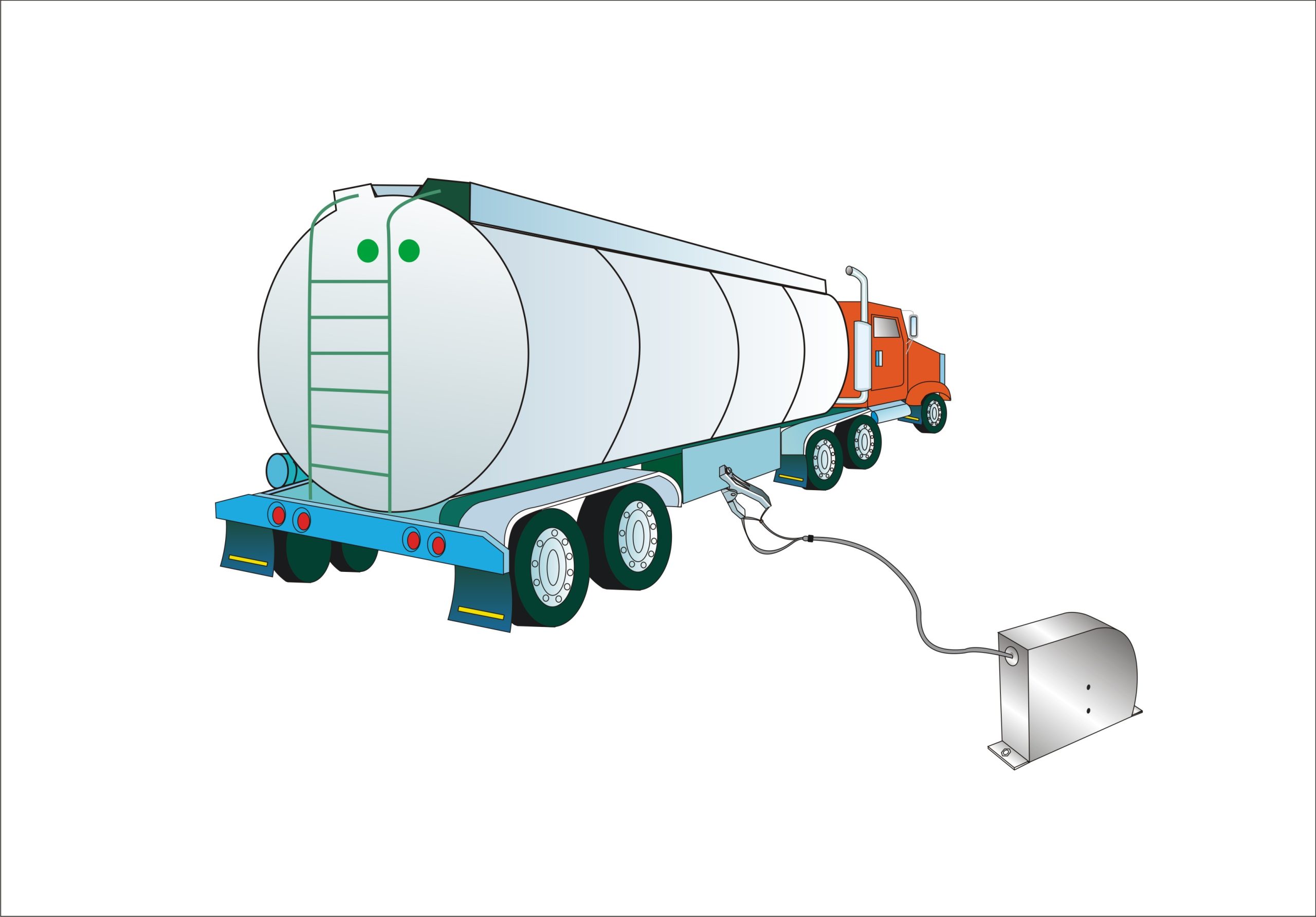

Grounding Cable Earth Reel – Earth Use this high quality earth grounding cable reel to safely ground an electrical system, or piece of electrical equipment, to ensure that static electricity build-up is safely discharged and returned to earth. Without a system such as this installed the electricity flow would simply continue to build, potentially sparking, electrocuting or causing fires/explosions within your working environment.

This version of the reel includes a heavy-duty connection clip for direct attachment to the grounding point. Designed for use in industrial-grade environments, this clip is sturdy, reliable and is rated to 400A.

The cable reel is supplied as standard in a shock-resistance plastic external case. The reel has a built-in ratchet stop device at every 50cm, ensuring that the cable is kept steady. The ratchet can be removed as needed (ideal if constant traction of the cable is required).

As standard this reel also includes double earth contacts, slipring with brass rings and brushes, IP42 ingress protection and collector insulating power of 2.5kV.

We have different types and models of Grounding Cable Earth Reel which comes in to Plastic body, Mild Steel Body with paint coated however we alter the unit as per customer requirement i.e. Cable Length, Clips, Body etc.

Earth Grounding Reel

Features:

  • Reliable grounding reel suited for various electrical applications
  • Provides a safe method of grounding electrical energy surplus Shock-resistant plastic external case
  • Cable roller guide
  • Ratchet stop device every 50cm (removeable)
  • Double earth contact
  • Collector insulating power of 2.5kV
  • Slipring with brass rings and brushes
  • Protection degree of IP42
  • Working temperature from -5 to 50°C
  • External Dimensions: 310 (D) x 290 (H) x 145mm (W)

Cable Reel Technical Specifications

Number of Conductors 1
Conductor Section 6mm²
Coiled Cable Length 12.5 + 1.5m (14m)
Cable Diameter 5.5mm
Thermal Protector No
Reinforced Collector Yes
Cable Type H05 V-F

For quotations and queries please call us at +923224602203 or email us at info@zirarenterprises.com, zirarenterprises@gmail.com
