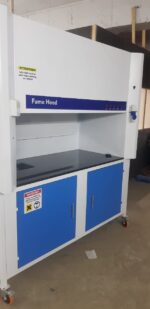

Laboratory Fume Hood

Laboratory Fume Hood

Laboratory Fume Hood is one the best and essential machine in the field of laboratory, when we talk about Laboratory Fume Hood there are certain options in the market our Laboratory Fume Hood manufactured from the Stainless Steel and anti static painted which enables the users to utilize it without any hitch. We are the Sole Manufacturer of Laboratory Fume Hood in Pakistan. We Manufacture Fume Hoods as per the customer’s discretion for example sizes can be customized and also Vertical Sliding Sash, Horizontal Sliding Sash and Combination Sliding Sash Fume Hoods in Pakistan.

Centrifugal Blower:

Silent high efficient remote blower, consisting of continuous rating motor and chemical resistant ampeller. It satisfies international safe velocity norms. With air suction capacity of 600 CFM controllable with the panel. Direct drive.

Ducting:

PPR ducting / chemical resistant flexible pipe with 6 feet of length.

Warranty:

It consists of 12 months (01 Year( of parts warranty. However all type of Parts and back-up and Support of the end user shall be provided even after the warranty period.

ALSO SEE OUR LAMINAR FLOW CABINET

Sizes:

Over All Dimensions with base cabinet 1473mm x 762mm x 2020mm
Fume hood dimensions 1473mm x 762mm x 1220mm
Base cabinet dimensions 1473mm x 635mm x 800mm
Inside fume hood working volume 1170mm x 558mm x 900mm

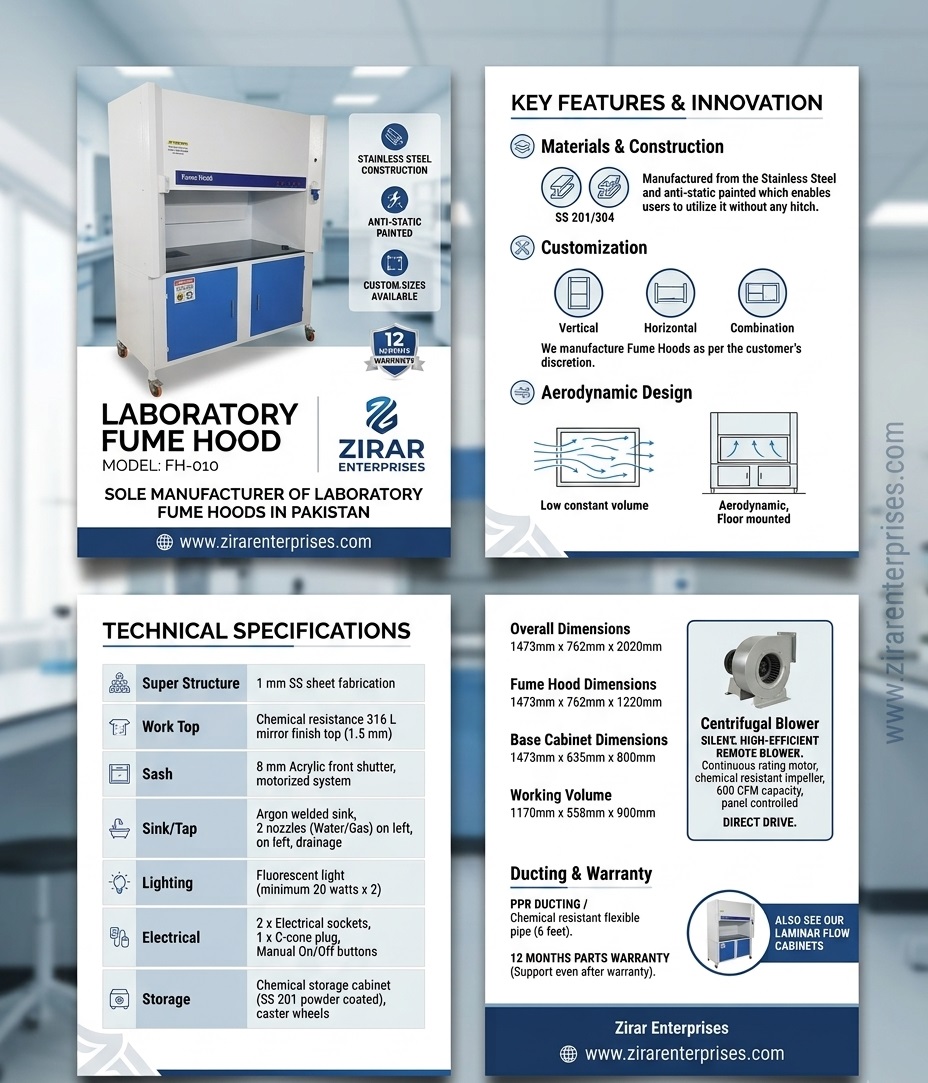

Technical Specification:

Sr No Specification Description
1 Design Structure Aerodynamic , Floor mounted
2 Air Flow type Low constant volume
3 Colour combination White & Blue
4 Powder coating Pre treated with chemical process and powder coated with chemical resistance coating
5 Material of construction Stainless Steel ( S.S 201)  +  (S.S 304)
6 Super structure All the fabrication is done by 1 mm S.S sheet
7 Corner Post Triangular profiled corner post placed on  both sides for utility line fittings and electric receptacles
8 Air flow Horizontal fixes airflow mounted on the worktop made up of S.S
9 Work top Chemical resistance 316 L mirror finish top 1.5 mm
10 Sink , water tap drain arrangement Work top have sink argon welded, with two nozzles for water and gas on the left sided wall and drainage pipe from the lower cabinets.
11 Sash ( Shutter) 8 mm Acrylic front shutter movable with motorized system for up and down of the shutter.
12 Mentainace ports Easily open able upper top for maintenance of blower , lights, and utility valves and tubing
13 Internal nozzles Powder coated brass nozzles
14 lightning Florescent light ( minimum 20 watts 2 in Qty)
15 Electrical utility 2 No electric sockets, one C cone plug
16 Controller Manual On Off buttons to control the utility
17 Chemical storage cabinet Totally fabricated in S.S 201 ( powder coated), cabinet on caster wheels , with two front doors (or as per customization shall be charged extra)

Description

Laboratory Fume Hood

Laboratory Fume Hood is one the best and essential machine in the field of laboratory, when we talk about Laboratory Fume Hood there are certain options in the market our Laboratory Fume Hood manufactured from the Stainless Steel and anti static painted which enables the users to utilize it without any hitch. We are the Sole Manufacturer of Laboratory Fume Hood in Pakistan. We Manufacture Fume Hoods as per the customer’s discretion for example sizes can be customized and also Vertical Sliding Sash, Horizontal Sliding Sash and Combination Sliding Sash Fume Hoods in Pakistan.

Centrifugal Blower:

Silent high efficient remote blower, consisting of continuous rating motor and chemical resistant ampeller. It satisfies international safe velocity norms. With air suction capacity of 600 CFM controllable with the panel. Direct drive.

Ducting:

PPR ducting / chemical resistant flexible pipe with 6 feet of length.

Warranty:

It consists of 12 months (01 Year( of parts warranty. However all type of Parts and back-up and Support of the end user shall be provided even after the warranty period.

ALSO SEE OUR LAMINAR FLOW CABINET

Sizes:

Over All Dimensions with base cabinet 1473mm x 762mm x 2020mm
Fume hood dimensions 1473mm x 762mm x 1220mm
Base cabinet dimensions 1473mm x 635mm x 800mm
Inside fume hood working volume 1170mm x 558mm x 900mm

Technical Specification:

Sr No Specification Description
1 Design Structure Aerodynamic , Floor mounted
2 Air Flow type Low constant volume
3 Colour combination White & Blue
4 Powder coating Pre treated with chemical process and powder coated with chemical resistance coating
5 Material of construction Stainless Steel ( S.S 201)  +  (S.S 304)
6 Super structure All the fabrication is done by 1 mm S.S sheet
7 Corner Post Triangular profiled corner post placed on  both sides for utility line fittings and electric receptacles
8 Air flow Horizontal fixes airflow mounted on the worktop made up of S.S
9 Work top Chemical resistance 316 L mirror finish top 1.5 mm
10 Sink , water tap drain arrangement Work top have sink argon welded, with two nozzles for water and gas on the left sided wall and drainage pipe from the lower cabinets.
11 Sash ( Shutter) 8 mm Acrylic front shutter movable with motorized system for up and down of the shutter.
12 Mentainace ports Easily open able upper top for maintenance of blower , lights, and utility valves and tubing
13 Internal nozzles Powder coated brass nozzles
14 lightning Florescent light ( minimum 20 watts 2 in Qty)
15 Electrical utility 2 No electric sockets, one C cone plug
16 Controller Manual On Off buttons to control the utility
17 Chemical storage cabinet Totally fabricated in S.S 201 ( powder coated), cabinet on caster wheels , with two front doors (or as per customization shall be charged extra)
