6 Channel ECG Machine ECG600G Contec

6 Channel ECG Machine ECG600G Contec is an Electrocardiograph which can collect 12-lead ECG signal and print waveform by the thermal printing system. It features in, recording and displaying ECG waveform in AUTO/Manual mode, measuring and diagnosing ECG waveform parameters automatically, prompting for “Lead off” and “Lack of paper”, multi-language interface, case database management. Main Features

Adopt high-resolution thermal printing system(8 dot/mm), no need for any adjustments. Recording frequency: up to
150Hz.Real-time and continuously record the clear and accurate ECG waveform and annotation character(including lead mark, sensitivity, paper speed and filter state, etc.).
Full-digital filter design, anti-baseline drift, AC and EMG interference.
Adjust the baseline automatically, optimize the print setting and optional rhythm leads.
In AUTO mode, finish recording by pressing the button once, which improves work efficiency.
Adopt digital signal processing technology and get high-quality ECG waveform via power frequency filter, baseline filter and EMG filter of ECG signal.
With the functions of auto-measurement, auto-analysis and auto-diagnosis for routine ECG parameters, which reduces the doctor’s burden and improves work efficiency.
Sync collection for 12-lead ECG, multiply printing formats, including 2×6+1(rhythm lead), 2×6, 3×4, 3×4+1(rhythm lead), 4×3, 4×3+1(rhythm lead), 6×2, 6×2+1(rhythm lead), rhythm 2, rhythm 3, rhythm 4, rhythm 5, rhythm 6, rhythm 7, channel record, etc.
Display of 3/6/12-lead ECG, "Lead off" and "Lack of paper" on one screen, and with ECG DEMO mode. Auto-check and auto-analysis for ECG parameters, ECG waveform can be recorded manually or automatically. And patient information can be stored by case database.
Time print can be set to every 1/2/3/5/10/20/30/60 minutes.
Print setting, including “Print and save”(print waveform and save case), “Print no save”(only print waveform but not save case), “Save no print”(only save case but not print waveform).
AC/DC, built-in rechargeable lithium battery and auto-protection circuit, and automatic power off when there is no operation in appointed time.
Store more than 1000 cases, convenient for case review and statistic.
Multi-language(Chinese, English, French, Spanish, Turkish, Polish, Italian, German, Portuguese, Kazakstan, Russian and Ukrainian) interface and report.

Click here to see our complete range of ECG Machines

Add to wishlist

Quick view

Add to compare

Handheld Single channel ECG Machine Meditech

Medical Equipment

Handheld Single channel ECG Machine Meditech

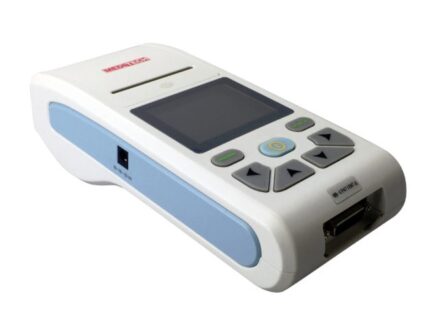

Handheld Single channel ECG Machine Meditech Model: EK101t is a Smart handheld single channel ECG with interpretation, Color & Touch screen. Storage more than 450 exam, Built-in lithium rechargeable battery, Auto-measurement, auto-analysis and auto-interpretation. USB and LAN socket Comes with PC Software and USB Connector. For prices, quotations and queries please feel free to contact us +92-322-4602203 or Email: zirarenterprises@gmail.com, info@zirarenterprises.com Product Features:

High resolution thermal-array output system (8 dots/mm) 150Hz.

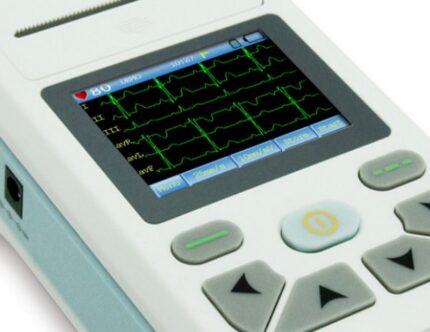

Large Screen shows 12/6/3/1 Lead(s) and remark real-time and continuously. ECG101T Display Keyboard
The remark includes: lead sign sensitivity paper speed filter state etc.
Touch TFT screen shows the working status
Safety Class: Class I Type CF applied part with defibrillation protection.
AC and DC. Power Supply and built-in lithium polymer rechargeable battery
Record 450 pieces of ECG and review the stored cases and patient information anytime.
Print & store different time length of case to convenient for doctor's case review and statistics.
Selectable print mode print length gain paper speed and report print selection. And for 4 hours continually under the best DC state.
Exterior SD card convenient for use. With SD card the device can store 100 case most.
USB2.0 port working mode can be selected freely between store and synchronization.
Digital signal processing to obtain the ECG of higher quality by AC DFT and EMG filter.
Auto-measurement interpretation and auto-diagnosis of regular ECG parameter
Small in Size 1.20 Size: 207mm (L) ×96mm (W) ×62mm (H) and light in weight 0.6 kg

COMES WITH PC SOFTWARE FOR DATA TRANSFER

TECHNICAL SPECIFICATION:

Lead: Standard 12 leads
Patient leak current: <10μA
Input impedance: ≥5MΩ
Frequency response: 1Hz~75Hz
Time constant: Time constant>3.2s
CMRR: ＞60dB
EMG interference filter: 25/35Hz(-3dB)
Recording way: Thermal array printing system
Specification of recording paper: 50mm（W)×20m(L) high-speed thermal paper

Paper speed:

Auto record: 25mm/s 50mm/s error:±5%
Rhythm record: 25mm/s 50mm/s error:±5%
Manual record:5mm/s 6.25mm/s10mm/s 12.5mm/s 25mm/s 50mm/s error:±5%.
Sensitivity selections: 2.55102040mm/mV 5 options error:±5%. Standard sensitivity is 10mm/mV±0.2mm/mV .
Auto record: Record setup according to record format and auto mode automatically changing leads measuring and analysing.
Manual record: Record setup according to record format manually changing leads.
Measurement parameters: HR P-R interval P Duration QRS Duration T Duration Q-T interval Q-Tc P Axis QRS Axis T Axis R(V5) S(V1) R(V5)+S(V1)
Product safety type: Class I Type CF defibrillation proof applied part.
Enduring polarization voltage: ±300mV
Noise level: ≤15μVp-p
Fuse specification: 2 pcs φ5×20mm AC time lag; T1.6A/250V(Power supply 220V) Operation: a) Environment temperature: +5℃~+35℃ b) Relative humidity: ≤80% c) Power supply: AC:100~240V50/60Hz DC:7.4V 3700 mAh rechargeable lithium battery d) Atmospheric pressure: 86kPa~106kPa

Transportation and Storage a) Environment temperature: -10℃~55℃ b) Relative humidity: ≤95% c) Atmospheric pressure: 50kPa~106kPa Input way: Floating and defibrillation protection Size: Size: 207mm(L)×96mm(W)×62mm(H) Net Weight: 0.5Kg
