Multiparameter Patient Monitor MD9000s Meditech

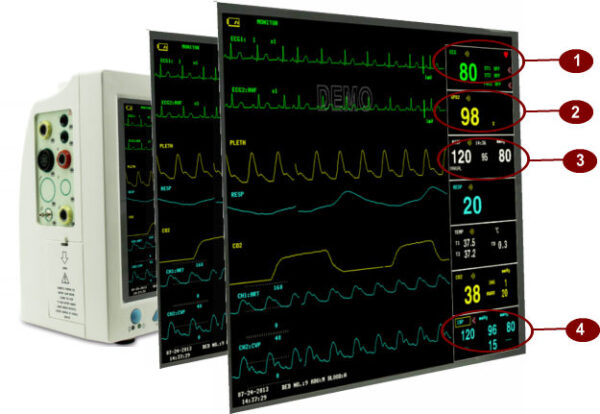

Multiparameter Patient Monitor MD9000s Meditech patient monitor has a 12.1"color TFT screen. Monitoring ECG, SP02, NIBP, RESP .2-TEMP. PR as standard parameters, and 2-IBP, ETC02 and thermal printer as optional. MD9000s is one of its kind and the best selling patient monitor in Europe.
Features:
- 12.1'' TFT color LCD, multi-language interface(Simplified Chinese, Traditional Chinese, English, French, German, Turkish, Spanish, Portuguese, Italian, Dutch, Romanian, Russian, Kazakh, Polish, Czech).
- Fanless design, quiet, energy-saving and clean, which reduces the possibility of cross-infection.
- All-round monitor for adult, pediatric and neonate.
- With standard interface, oxygen graph, trend graph, big character interface and view bed, convenient to observe.
Finish all operations by keys and knobs.
- Maximum 8-channel waveform synchronous display.
- Display 7-lead ECG waveform on one screen, cascade ECG waveform display
- Adopt digital SpO2 technology, anti-motion and anti-ambient light interference, and measurement can be performed under the circumstance of weak filling.
- Heart rate variability (HRV) analysis function
- NIBP measurement mode: Manual/AUTO/STAT, storage for 4800-group NIBP data.
- Review for 71 alarm events of all parameters and 60 arrhythmia alarm events.
- Drug concentration calculation and titration table functions.
- One-touch printing of trend graph
- Connect to Central Monitoring System by 3G, Wi-Fi or wired mode.
- AC/DC, built-in rechargeable lithium battery achieve uninterrupted monitoring.
- Anti-high frequency surgical unit, defibrillation-proof (special leads are necessary).
Options:
- Invasive Blood Pressure (IBP)
- Carbon dioxide (CO2) Module
- Masimo SpO2 Module
- Thermal Printer
Specification:
ECG
Lead Mode 5 Leads ( R, L, F, N, C or RA, LA, LL, RL, V)
Lead selection I, II, III, avR, avL, avF, V,
Waveform 2 ch
Lead mode 3 Leads ( R, L, F or RA, LA, LL)
Lead selection I, II, III,
Waveform 1 ch
Gain ´2.5mm/mV, ´5.0mm/mV, ´10mm/mV, ´20mm/mV
HR and Alarm
Range
Adult 30 ~ 300 bpm
Neo/Ped 30 ~ 350 bpm
Accuracy ±1% or ±1bpm, which great
Resolution 1 bpm
Sensitivity > 200 uV P-P
Differential Input Impedance > 5 MΩ
CMRR
Monitor > 105 dB
Operation > 105 dB
Diagnosis > 85 dB
Electrode offset potential ±300mV
Leakage Current < 10 uA
Baseline Recovery < 10 s After Defi.
ECG Signal Range ±8 mV (Vp-p)
Bandwidth
Surgery 1 ~ 15 Hz
Monitor 0.5 ~ 35 Hz
Diagnostic 0.05 ~ 100 Hz
Calibration Signal 1 mV (Vp-p), ±5% Accuracy
ST Segment Monitoring Range
Measure and Alarm -2.0 ~ +2.0 mV
ARR Detecting
Type ASYSTOLE, VFIB/VTAC, COUPLET, BIGEMINY, TRIGEMINY, R ON T, VT>2, PVC, TACHY, BRADY, MISSED BEATS, PNP, PNC
Alarm Available
Review Available
Tall T-wave rejection capability 1.2mV
Heart rate averaging the average value of the latest 6 R-R intervals which have ignored the maximum and minimum
Updating rate of the display 1s
Heart rate meter accuracy and response to irregular rhythm：
Bigeminy ventricular 80bpm
Bigeminy ventricular alternative lente 57 or 63bpm
Bigeminy ventricular alternative rapid 122 or 123bpm
Systoles bidirectional 95bpm
Response time to heart rate meter to change in heart rate 80 to 120bpm
Average 3.7s
Range 3.2s ~ 4.1s 80 to 40bpm
Average 4.7s
NIBP
Method Oscillometric
Mode Manual, Auto, STAT
Measuring Interval in AUTO Mode 1, 2, 3, 4, 5, 10, 15, 30, 60, 90,120,240,480,960Min
Measuring Period in STAT Mode 5 Min
Pulse Rate Range 40 ~ 240 bpm
Alarm Type SYS, DIA, MEAN
Measuring and alarm Range
Adult Mode
SYS 40 ~ 270 mmHg
DIA 10 ~ 215 mmHg
MEAN 20 ~ 235 mmHg
Pediatric Mode
SYS 40 ~ 200 mmHg
DIA 10 ~ 150 mmHg
MEAN 20 ~ 165 mmHg
Neonatal Mode
SYS 40 ~ 135 mmHg
DIA 10 ~ 100 mmHg
MEAN 20 ~ 110 mmHg
Resolution
Pressure 1mmHg
Accuracy
Pressure
Maximum Mean error ±5mmHg
Maximum Standard deviation ±8mmHg
Overpressure Protection
Adult Mode 297±3 mmHg
Pediatric Mode 240±3 mmHg
Neonatal Mode 147±3 mmHg
TEMPERATURE
Channel 2
Measuring and Alarm Range 0 ~ 50 °C
Resolution 0.1°C
Accuracy ±0.1°C
Actualization interval about 1 Sec.
Average Time Constant < 10 Sec.
IBP (optional)
Channel 2
Label ART, PA, CVP, RAP, LAP, ICP, P1, P2
Measuring and alarm range
ART 0~300mmHg
PA -6~120mmHg
CVP/RAP/LAP/ICP -10~40mmHg
P1~P2 -10~300mmHg
Press Sensor
Sensitivity 5 uV/V/mmHg
Impedance 300-3000Ω
Resolution 1mmHg
Accuracy ±2% or 1mmHg which great
Actualization Interval about 1 Sec
Display
Device
12.1 in. Color TFT Made by Sharp Japan
Messages
7 Waveforms Maximum
1 Alarm LED ( Yellow/Red)
Screenshot 1 Power LED (Green)
1 Battery Charge LED ( Yellow)
3 Sound Mode corresponding Alarm Mode
Signal Interface
ECG Output BNC
Amplitude 1 V/mV
Accuracy < 5 %
Impedance 50 Ω
Signal Delay < 20 mS
Recall
Trend Recall
Short 1 hrs, 1 Second Resolution
Long 72 hrs, 1 Min. Resolution
Alarm Event Recall
71 alarm events of all parameters and 8/16/32seconds of corresponding waveform.
NIBP Measurement Recall
At least 400 NIBP measurement data.
Battery
Rechargeable 3.7 A/Hr 7.4V Li battery
Operating time under the normal use and full charge greater than 180minutes
Operating time after the first alarm of low battery will be about 5 minutes
Recorder (Option)
Record Width 48 mm
Paper Speed 25/50 mm/S
Trace 2
Size and Weight
Size Monitor 310 x 140 x 263 mm
Weight Monitor 3.8 kg
