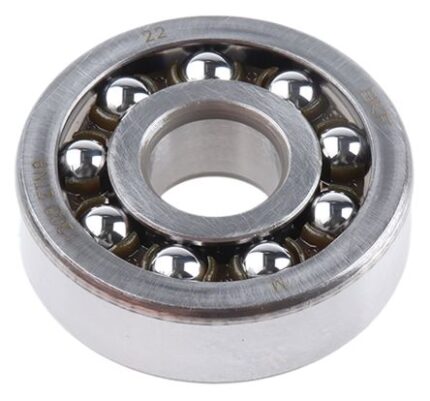

Self Aligning Ball Bearing 1200 ETN9/C3 SKF
Self Aligning Ball Bearing 1200 ETN9/C3 SKF
Self Aligning Ball Bearing 1200 ETN9/C3 SKF have two rows of balls, a common sphered raceway in the outer ring and two deep uninterrupted raceway grooves in the inner ring. They are available open or sealed. The bearings are insensitive to angular misalignment of the shaft relative to the housing. which can be caused, for example, by shaft deflection.
Price in USD: 14.28 $ (including all charges product will be couriered at your door)
Technical information
- Size: 10 x 30 x 9mm
- Inside: 10.00
- Outside: 30.00
- Width: 9.00
- Mass: 34,00
Speed ratings
- Reference speed: 56000 r/min
- Limiting speed: 36000 r/min
Suffixes
- 1200 ETN9 / C3
- C3: Increased radial internal clearance
- E: Reinforced type
- TN9: Cage made of glass fiber reinforced polyamide 66, rolling element guided
Description
Self Aligning Ball Bearing 1200 ETN9/C3 SKF
Self Aligning Ball Bearing 1200 ETN9/C3 SKF have two rows of balls, a common sphered raceway in the outer ring and two deep uninterrupted raceway grooves in the inner ring. They are available open or sealed. The bearings are insensitive to angular misalignment of the shaft relative to the housing. which can be caused, for example, by shaft deflection.
Price in USD: 14.28 $ (including all charges product will be couriered at your door)
Technical information
- Size: 10 x 30 x 9mm
- Inside: 10.00
- Outside: 30.00
- Width: 9.00
- Mass: 34,00
Speed ratings
- Reference speed: 56000 r/min
- Limiting speed: 36000 r/min
Suffixes
- 1200 ETN9 / C3
- C3: Increased radial internal clearance
- E: Reinforced type
- TN9: Cage made of glass fiber reinforced polyamide 66, rolling element guided
